Goodwill with area businesses and local administrators was important to UPRR. A display was needed to quickly convey the site layout and show it in context within existing industrial uses during planning discussions.

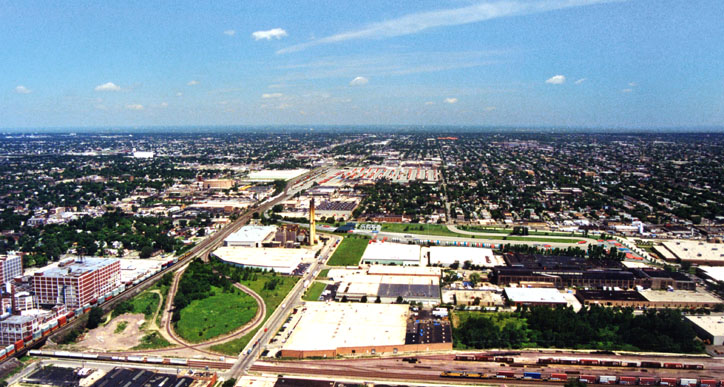

POITRA photographers made an aerial photo survey of the site by helocopter from which the simulation base photograph was to be selected. The Railroad decided on two views from oposite ends of the site because of the length of the facility and supply tracks. The view from the sorutheast was closest to the gate and local access.
UPRR provided preliminary CADD site plans for the proposed facility which were perspective matched to the aerial base photograph. POITRA then painted the areas of layout using it's experience visiting similar existing facilities. Truck runways were rendered in concrete and auto parking in asphalt using digital painting methods. All rail, roadway and parking striping were added in the same manner. The layout was populated with POITRA 3D stock model railroad equipment.
POITRA Visual has had plenty of experience working with rail intermodal facilities and it's principals have actual railroad bridge design experience. The simulation process is always much more efficient when the artists are familiar with the industry and can add the detail that makes the simulation believable.This detail is often far beyond the information that the Railroad can provide at the conceptual stage of development.

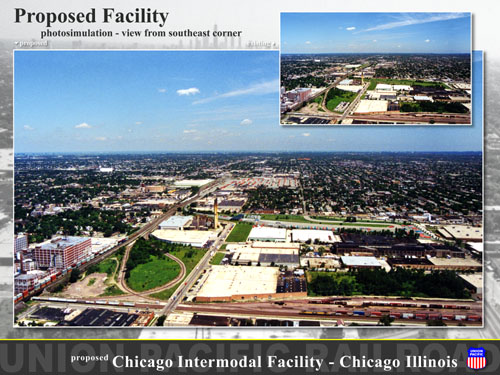

A finished display board designed by POITRA was delivered as a printed mounted panel to UPRR staff members for their use with area residents and local goverment authorities.
Take a closer look! POITRA created a displays suitable for printing at poster and handout sizes (click to magnify).
POITRA professional graphic artists can help any project by creating stunning settings for any of your project information. Presentation can be a big part the approval effort and it helps to have artists who understand your process!
POITRA offers graphic design for display boards, handouts, newsletters, digital presentations, interactive media and even has an extremely accomplished web design team.
