West Chicago Intermodal Facility Photosimulations

Union Pacific Railroad, West Chicago, Illinois

The Union Pacific Railroad's (UPRR) Department of Industrial Development wished to expand the railroad's capacity for intermodal container traffic in the northern midwest. The expansion began with site selection in the Chicago area for an intermodal facility dubbed Global Three. Numerous potential sites were identified and conceptually designed for evaluation. POITRA was selected to provide support for this task which included visual simulation and public outreach.

The West Chicago site would occupy farmland west of Chigago. It would serve as a rail port for Union Pacific customers shipping to destinations in the northeastern United States and eastern Canada with access to eastern partner railroads.

POITRA 3D Model railroad equipment
POITRA 3D Model railroad equipment
POITRA 3D Model railroad equipment
POITRA 3D Model railroad equipment
POITRA 3D Model railroad equipment
POITRA 3D Model railroad equipment
POITRA 3D Model railroad equipment
POITRA 3D Model railroad equipment
POITRA 3D Model railroad equipment

Take a closer look! POITRA uses a large library of it's own stock 3D Model railroad equipment for use in detailing photosimulations.

Photo-realistic photo simulation and design visualization services by POITRA Visual

Photosimulations | Mouse-over images below to toggle:


arrow up
E

arrow up
1

Goodwill with surrounding communities was important to UPRR. A display was needed to quickly convey the site layout and show it in context within existing agrarian uses during discussions with local stakeholders.

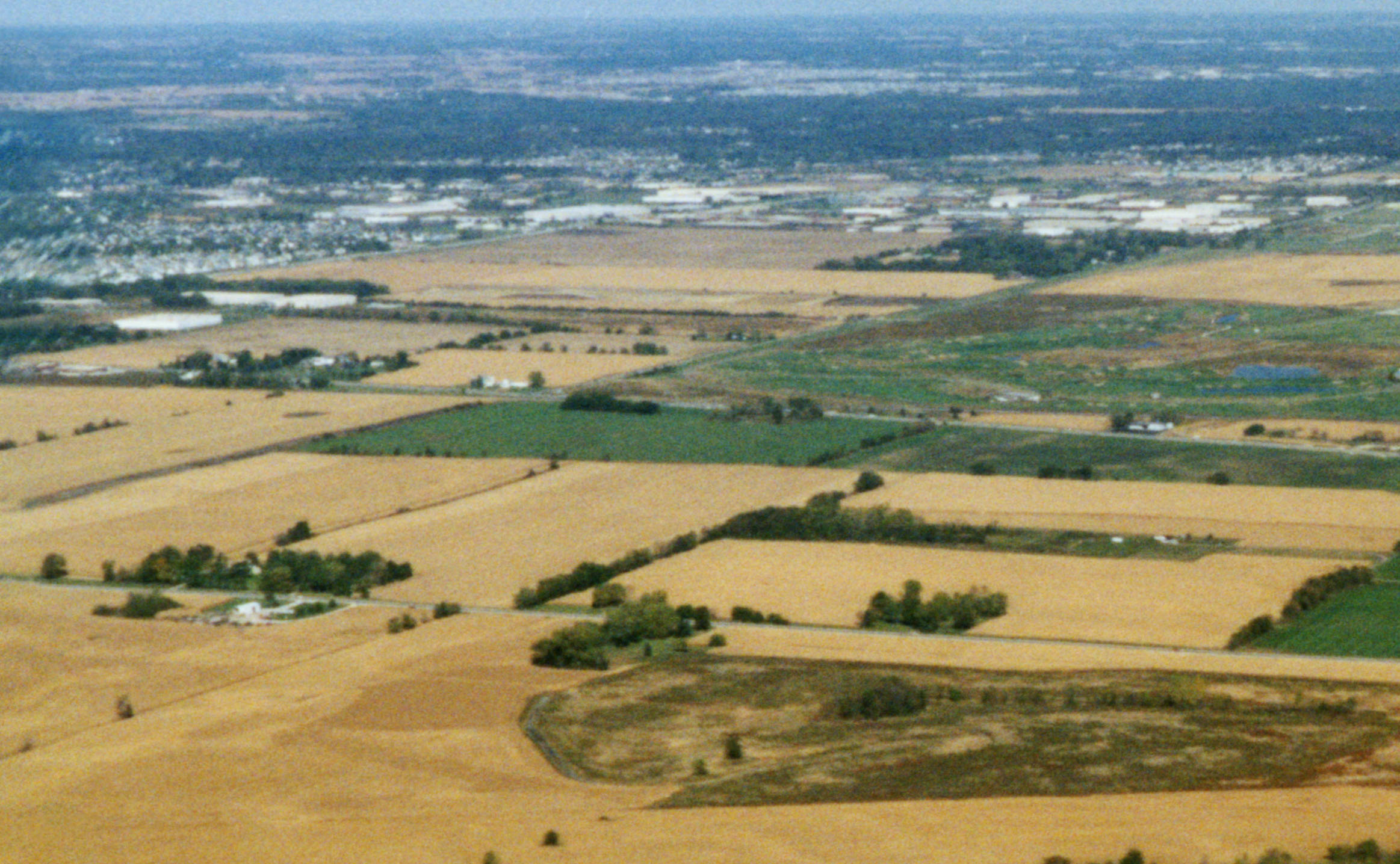

POITRA photographers made an aerial photo survey of the site by helocopter from which the simulation base photograph was to be selected. The Railroad made the final choice.

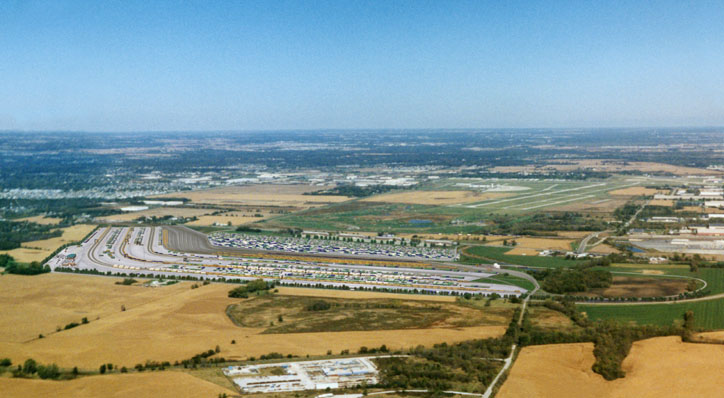

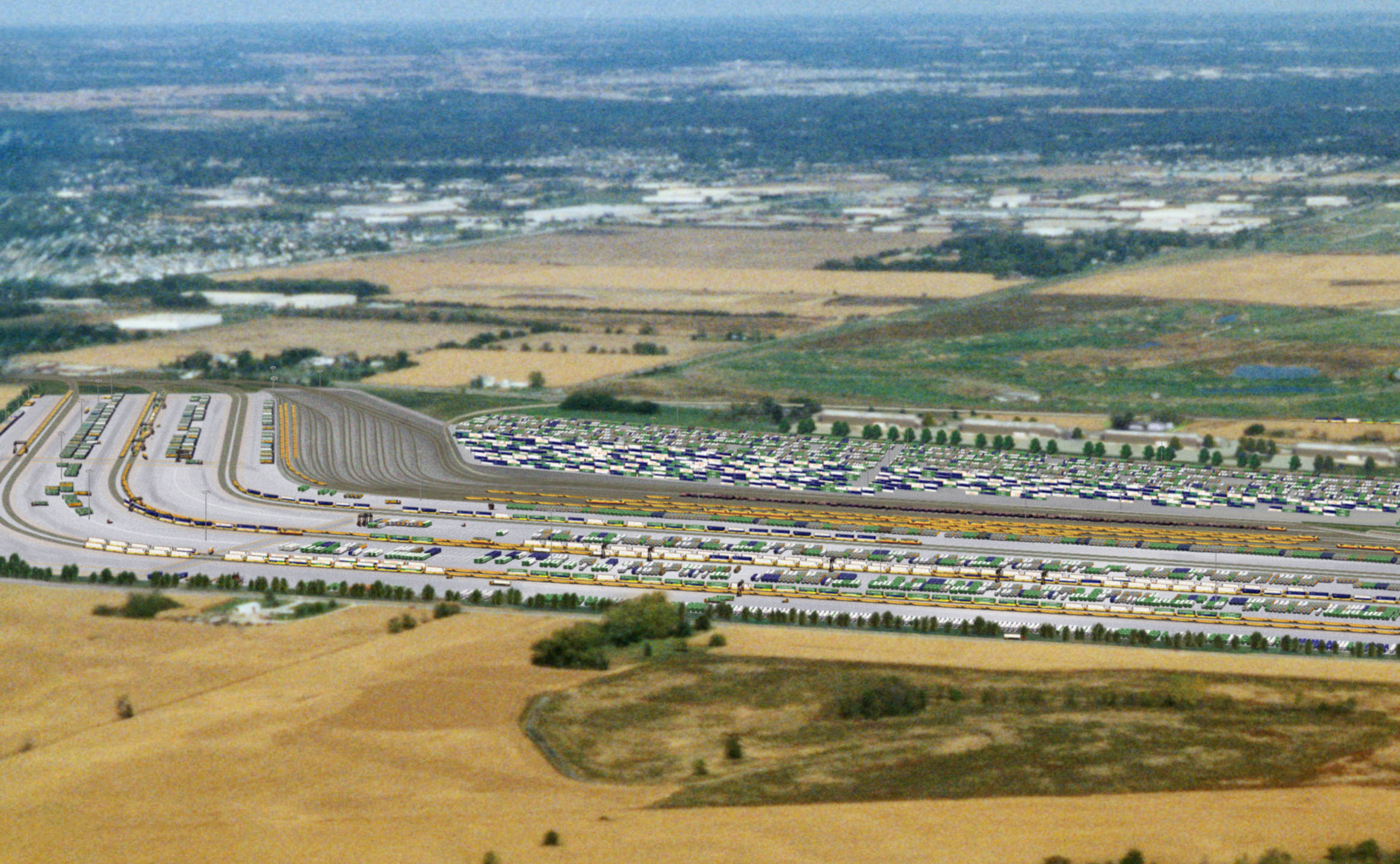

UPRR provided preliminary CADD site plans for the proposed facility which were perspective matched to the aerial base photograph. POITRA then painted the areas of layout using it's experience visiting similar existing facilities. Truck runways were rendered in concrete and auto parking in asphalt using digital painting methods. All rail, roadway and parking striping were added in the same manner. The layout was populated using POITRA 3D stock model railroad equipment.

POITRA Visual has had plenty of experience working with rail intermodal facilities and it's principals have actual railroad bridge design experience. The simulation process is always much more efficient when the artists are familiar with the industry and can add the detail that makes the simulation believable.This detail is often far beyond the information that the Railroad can provide at the conceptual stage of development.

A finished display board designed by POITRA was delivered as a printed mounted panel to UPRR staff members for their use with area residents and local goverment authorities. end of article

Take a closer look! POITRA created a displays suitable for printing at poster and handout sizes (click to magnify).

POITRA professional graphic artists can help any project by creating stunning settings for any of your project information. Presentation can be a big part the approval effort and it helps to have artists who understand your process!

POITRA offers graphic design for display boards, handouts, newsletters, digital presentations, interactive media and even has an extremely accomplished web design team.
