South Platte Corridor at Auraria Station Photosimulations

RTD, Denver, Colorado

The South Platte Valley Corridor is first extension or spur from Denver's original RTD Central Corridor light rail transit (LRT) system.* The original line runs from the Broadway Station past the Auraria Campus, through downtown and north to the Five Points neighborhood. The South Platte Valley Corridor joins the line at Auraria and runs north past the Lower Platte Valley attractions to Denver Union Terminal (DUT) in downtown Denver.

POITRA was selected to help quickly convey station concepts for the three most important new stations along the line. One station serves the busy Auraria Campus of higher learning. A visualization was needed to help inform the directors of the school and Denver administrators.

Photo-simulations was determined to be the best medium for accurate evaluation and for confident presentation to public stakeholders. POITRA created each photo-simulation using combined 3D rendering and digital image editing techniques.

POITRA used its existing custom Siemens Duewag 100 LRT model vehicle and applied the updated RTD color scheme.

POITRA often creates custom transit vehicles at no cost to the project.

Photo-realistic photo simulation and design visualization services by POITRA Visual

Photosimulations


arrow left1
arrow leftE

Mouse-over images above to toggle between the existing photo and the photosimulation.

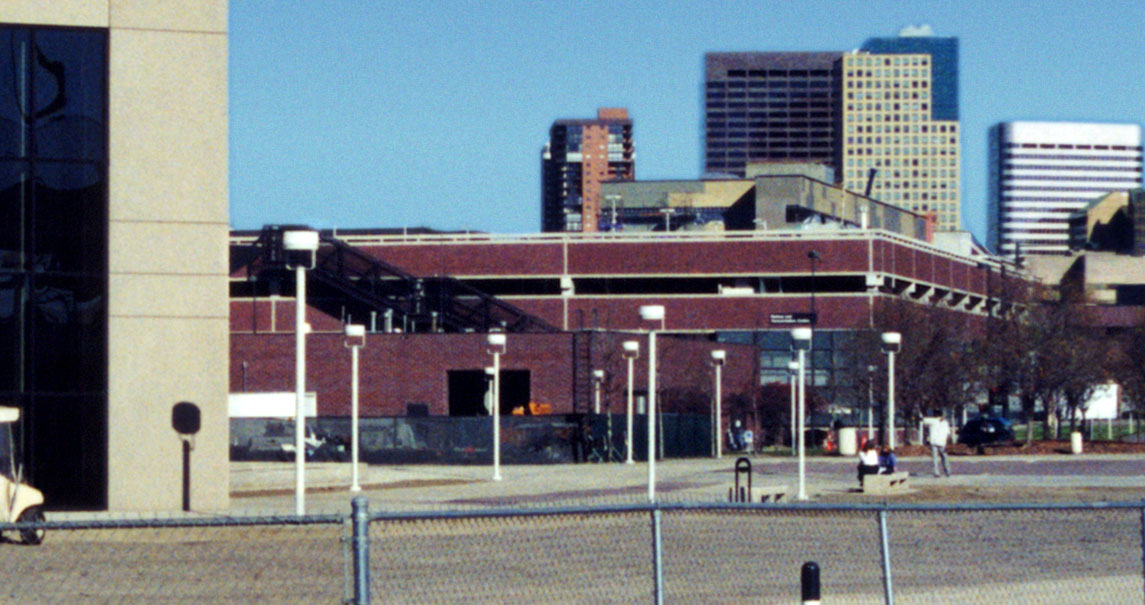

POITRA photographed several views of the Auraria Station site with the intent of describing its new LRT character in context. Once the final view was selected some the existing elements such as fences had to be removed to match the Engineer's proposed LRT station design. The modified photograph then served as the base image for proposed LRT simulation.

left quotation markOnce again, thank you for all your help in creating a great product! The simulations were one of the highlights of the meeting - many people were enticed. Your work helped to describe to people what the stations will likely look like.”

K.K., BRW/URS Corp
South Platte Corridor P.R. Manager

Modelers at POITRA had previously created a detailed technical model of RTD's Siemens Duewag 100 LRT vehicle directly from manufacturers specification sheets. The newly adopted RTD color scheme was applied.

POITRA then created a 3D site model that included the track bed, rails, LRT platforms, station amenities, canopies, catenary system and POITRA model RTD Siemens Duewag 100 LRT vehicles. The model was camera matched, lighted, rendered and composited with the base photograph. Landscaping and station patrons were added to create the final LRT photo-simulation.

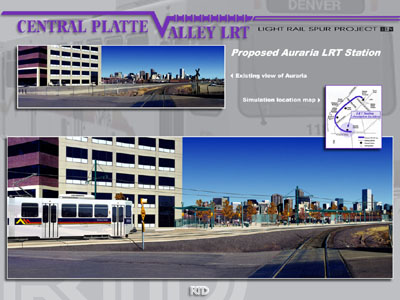

Graphic artists at POITRA set the simulation in a display board format with simulation location map for printing. The finished displays were used in meetings with the city, Auraria representatives and public stakeholders. The final images were also used in project environmental documents.end of article
