SR4 at South Ventura Avenue Photosimulations

Caltrans, Stockton, California

The SR4 Crosstown Freeway Extension for the San Joaquin Council of Governments, CalTrans and the City of Stockton, continued SR4 from it's previous termination at Fresno Avenue over the Burlington Northern Santa Fe (BNSF) RR to Navy Drive and the Port of Stockton. The project looked at a viaduct option and an Mechanically Stabilized Earth (MSE) wall option.

POITRA was asked to prepare a series of visual simulations to address anticipated visual impact and design concerns from public and local government stakeholders. Photo-simulation was the obvious medium for accurate and convincing presentations.

Take a closer look! The entire facility was created using POITRA custom and library 3D Models (click to magnify).

Photo-realistic photo simulation and design visualization services by POITRA Visual

Photosimulations | Mouse-over images below to toggle:

arrow up

arrow up

arrow up

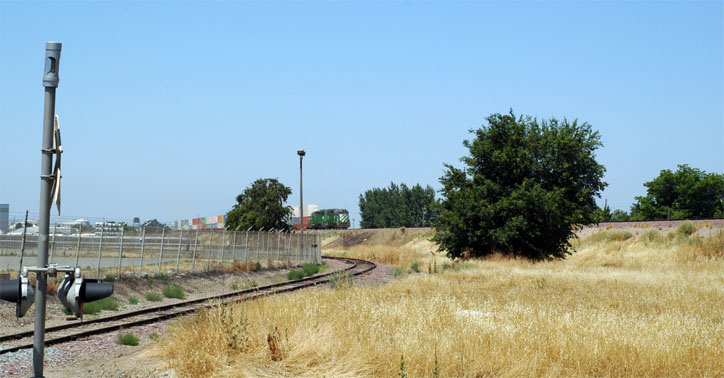

Roadway level simulations were used because the project team needed to evaluate the aesthetic qualities of each option. The viaduct alternative would include bell topped pier columns and box girders, the wall alternative would show MSE panel treatments and both alternatives would include landscaping. The Engineer provided photograph required intense work to remove buildings and trees in the path of SR4 which revealed preveously unseen areas beyond.

left quotation markThanks again for pulling this together so quickly Matt. We are very happy with your product! ”

SR4 Consultant Project Manager

POITRA modelers constructed an accurate 3D site model for each alternative which included the viaduct and piers, walls, MSE panels and abutments and even markers for proposed landscaping elements.

POITRA relied upon its principal's previous career experience in bridge and highway design to follow design plans and complete the model from concept level plans.

The site models were then camera matched, lighted, rendered and composited with the base photograph to create a visual simulation for each alternative. The final simulations were finished using traditional digital image editing techniques.

POITRA graphic artists designed presentation boards for each alternative. The finished simulations were used in stakeholder meetings. end of article
