I-70 East at Filmore Street Photosimulations

CDOT, Denver, Colorado

Interstate 70 is the primary east west artery through the Denver metropolitan area. Many of its bridges and viaducts dated to the early interstate era and were in need of upgrade and replacement. A large portion of I-70 just east of I-25 was elevated on one of these aging viaducts badly in need of structural and capacity improvements. Half of this viaduct had been rebuilt by an earlier project. Major questions remained as to exactly how to replace the second half. The precise alignment was one these questions.

The Colorado Department of Transportation (CDOT) conducted the I-70 East Environmental Impact Study (EIS) to determine the answers. POITRA Visual was selected to provide design visualization services and a comprehensive public information website for the project.*

Photo-simulation was thought to be the best medium for accurate and convincing presentations.

POITRA Visual aerial simulation of I-70 Viaduct existing view.
POITRA Visual aerial simulation of I-70 cover proposed view.
POITRA Visual aerial simulation of I-70 cover proposed view.
POITRA Visual aerial simulation of I-70 cover proposed view.

POITRA created aerial view visual simulations of the proposed I-70 East Project SDEIS alternatives.

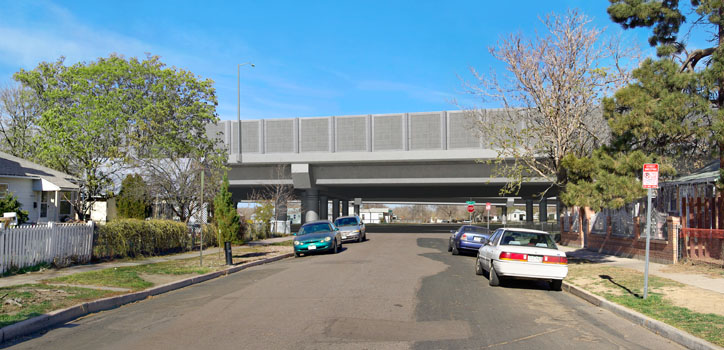

Photo-realistic photo simulation and design visualization services by POITRA Visual

Photosimulations | Mouse-over images below to toggle:


arrow up
E

arrow up
1

arrow up
2

arrow up
3

arrow up
4

All of the Supplemental Draft EIS (SDEIS) alternatives followed the existing alignments with variations that shifted that alignment to the north or to the south each preserving different existing business and 4f properties. A visual simulation was made at Filmore Street to illustrate the differences between the various alternatives at a typical residential location.

POITRA photographers made a corridor photo survey from which all the base photographs were selected by the Engineer.

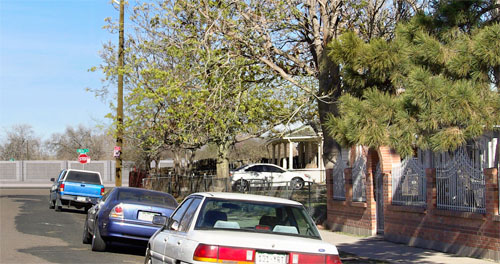

POITRA modelers created an accurate 3D model of the northern shift viaduct, the southern shift viaduct and the partial cover alternative which placed I-70 below grade. POITRA principal's design experience ensured accurate models. These models were then camera matched with the base photograph. Artists could then determine what areas of the background would need to be restored, removed or separated from the background.

left quotation markA surprizing percentage of the work on this type of simulation occurs when restoring background elements as foreground elements are removed. Unfortunately all that work usually represents a comparatively small area of the overall simulation. ”

M.P., POITRA Visual
Visual Simulations Project Manager

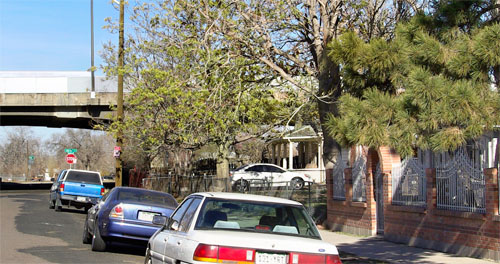

The existing viaduct and several residence and many trees were to be removed from the path of the new viaduct. Each alternative affected a different set of residences and trees.

In the simulation view these removals would exposed several of the remaining residences beyond. POITRA artists carefully reproduced these newly exposed buildings as they removed the appropriate foreground buildings for each alternative. This work was accomplished using traditional digital painting techniques. The 3D model was then lighted to match the photograph, rendered and combined with it to create the final simulation.

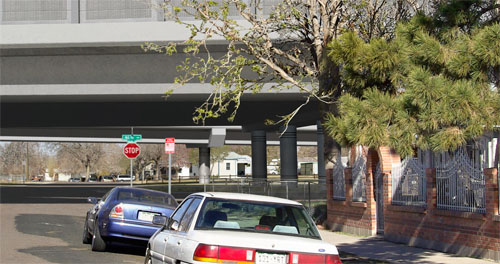

Special effort was required to bring the bare foreground trees to the front of the new viaduct and to correctly depict the newly exposed neighborhood behind.

POITRA displayed the simulations on the I-70 East EIS public website at the request of the Engineer. The finished simulations were also used by CDOT in the I-70 East EIS public meetings, newsletters and as exhibits in the SDEIS Document.end of article
